| 材料 | 钢 |
| 长度x宽度 | 28.38 m (93'01")x6.5 m (21'03") |
| 吃水深度 | 1.7 m (5'06") |
| 速度 | 11 kt |
| 乘客人数 | 198 unit |
| 发动机功率 | 331 kW (450 hp) |

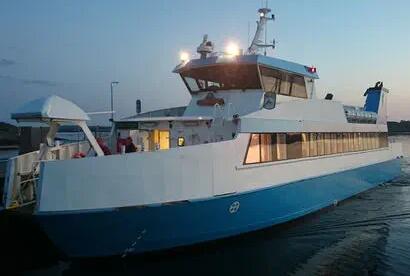

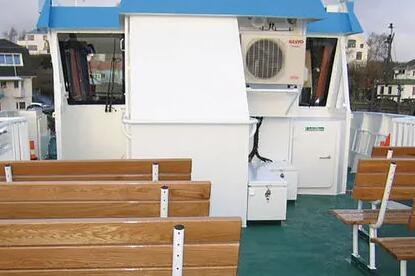

产品简介28米长的渡轮由钢制船体和铝制上层建筑组成。船体和它的推进器是为在冰雪条件下运行而设计的。一个强大的船首推进器和两个主发动机在拥挤的港口提供了良好的可操作性。客舱采用开放式布局，有110个座位，50个座位在风雨甲板上。在客舱的后面有一个大的货物甲板区，有一台起重机用于装载和卸货。货物通过船头坡道处理。 规则 瑞典海事局 操作区域：E 船体：DNV Ice 1C GMDSS: A1 装备 船首遮阳板：瑞典船公司的铝制结构，用液压系统自动控制 起重机：Palfinger PK6500M 发电机组：欧南28千伏安 液压动力组：2个主发动机泵 乘客区的地板加热 有空调的驾驶室 船员茶水间和休闲区 办公室和服务区 客用卫生间和HWC 推进器 齿轮：ZF 550V 螺旋桨：2个固定螺距螺旋桨，冰上加固的 船首推进器 Petters Marine Hydraulics ST 60-80 转向器：Tenfjord 方向舵：瑞典船公司的大面积冰刀 电气和电子设备 24VDC主电压 3x230VAC 逆变器，船上有完整的230VAC供应 港口发电机组28kVA 400VAC 16A 岸电连接 启动电池组 消耗型电池组为所有负载提供电力，无需发电机组 蓄电池组之间的交叉连接 乘客信息的声音和视觉 雷达 海图系统 GPS指南针 AIS VHF DSC 甚高频 手持式VHF x2 磁罗盘 搜索灯 红外线相机 - CCTV 英文介绍The 28 m ferry is built with steel hull and aluminum superstructure. The hull and its propulsion is made for operation in ice conditions. A strong bow thruster and two main engines offers good maneuverability in congested harbors. The passenger cabin has an open layout with 110 seats and 50 seats on weather deck. Aft of the passenger cabin there is a large cargo deck area with a crane for loading and unloading. Cargo is handled via the bow ramp. Rules Swedish Maritime Authority Operation area: E Hull: DNV Ice 1C GMDSS: A1 Equipment Bow visor: Swedeship aluminum structure automated with hydraulics Crane: Palfinger PK6500M Genset: Onan 28kVA Hydraulic power pack: 2x main engine pumps Floor heating in passenger area Air conditioned wheelhouse Crew pantry and relax areas Office and service area Passenger WC and HWC Propulsion Propeller: 2x Fixed pitch propellers, ice reinforced Bow thruster Petters Marine Hydraulics ST 60-80 Steering: Tenfjord Rudder: Swedeship large area with ice knife Electric and electronics 24VDC main voltage 3x230VAC inverter, full 230VAC supply onboard Harbour genset 28kVA 400VAC 16A shore connection Starting battery groups Consuming battery group providing power for all loads without need for genset Cross connections between battery groups Passenger information audible and visual Radar Chart system GPS Compass AIS VHF DSC VHF VHF hand held x2 Magnetic compass Search light Infrared camera • CCTV |
