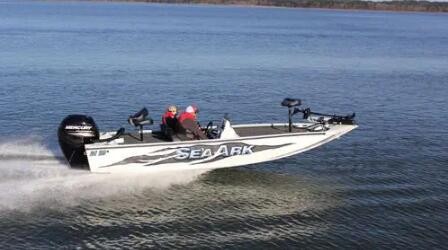

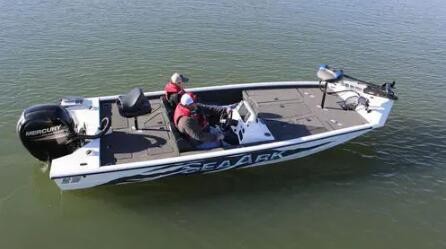

侧边控制台4人钓鱼运动船(开放式铝制休闲艇)
产品图片
重要参数
    发动机类型 舷外
    甲板布局 侧边控制台, 开放式
    用途 钓鱼运动
    材料 铝制
    人数 最多容纳 4 人
    甲板布置 日光浴
    长度 19'07"(5.97 m)
    宽度 82 in
    发动机功率 175 ch(175 hp)
    燃料容量 13 gal

产品简介

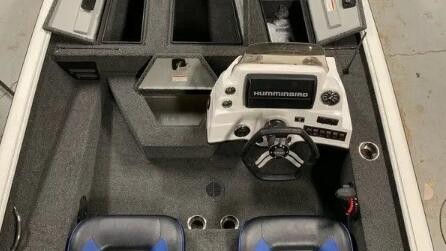

BC 190采用了新的船体设计,即10°全焊接的进化船体,旨在减少阻力,提高速度和性能。内部布局经过精心设计,由鲈鱼船行业的领导者提供意见。两个可锁定的照明鱼竿箱,四个可锁定的存储箱(两个照明),内置的船头阶梯冷却器和36加仑的活水井都是标准配置。SeaArk设计的主要内容是强度和耐久性,BC190也不例外。由0.100号铝制船体、地板和甲板制成,3/16 "挤压中心龙骨,带有附件轨道的超大型挤压盖板,整个船体没有木材。它还具有由行业领导者Bass Cat设计的玻璃纤维控制台,可容纳大型测深仪并提供舒适的驾驶。

10°全焊接的进化船体
全铝地板和甲板
全程无木材
4927平方英寸的前甲板空间(5.78' x 5.92')。
3302平方英寸的后甲板空间(6.33' x 3.58')
可锁定照明的7'中央鱼竿箱(10根鱼竿)。
可锁定照明的7'端口鱼竿箱(4根鱼竿)
35加仑活水井,带双盖和灯光

控制台上的LED礼宾灯
电压表
6号拖曳电机接线
船首倾斜开关
LED可移动导航灯
12伏配件插头和USB接口
活水舱再循环和泵出系统
凹陷区域可用于脚踏控制拖曳电机
液压转向系统

可选择的聚氨酯油漆
炮台、船体和侧底涂漆
甲板上有两个鱼竿绑带
四块不锈钢底板
两个可锁定的照明储存箱
两个可锁定的后部储存箱
鱼尺
四个电池托盘
可提供各种发动机

英文介绍

The BC 190 features a new hull design, the 10° all-welded Evolution Hull, designed to reduce drag for better speed and performance. The interior layout is well designed with input from leaders in the Bass boat industry. Two lockable lighted rod boxes, four lockable storage boxes (two lighted), built-in bow step cooler and 36-gallon livewell are all standard features. A staple in the SeaArk design is strength and durability and the BC 190 is no different. Made from .100-gauge aluminum hull, floors and decks, 3/16” extruded center keel, over sized extruded caprails with accessory track and no wood throughout the boat. It also features a fiberglass console designed by industry leader, Bass Cat, to accommodate a large depth finder and provide a comfortable drive.

10° all-welded evolution hull
All-aluminum floors & decks
No wood throughout
4927 square inches of front deck space (5.78' x 5.92')
3302 square inches of rear deck space (6.33' x 3.58')
Lockable lighted 7' center rod box (10 rods)
Lockable lighted 7' port rod box (4 rods)
35 gallon livewell with double lids & lights

LED courtesy light on console
Volt meter
6 gauge trolling motor wiring
Bow tilt-trim switch
LED removable navigation lights
12 volt accessory plug w/USB port
Livewell recirculation & pump out system
Recessed area for foot control trolling motor
Hydraulic steering

Choice of urethane paints
Painted gunnel, hull, & side bottom
Two rod straps on deck
Four stainless steel base plates
Two lockable lighted storage boxes
Two lockable rear storage boxes
Fish ruler
Four battery trays
Available with a variety of engines
