产品简介

专门设计用于混合和分配多种1:1体积的材料

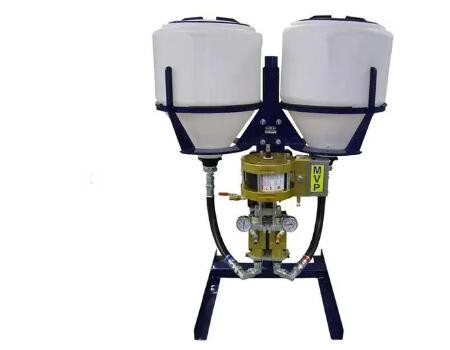

Patriot Duo 1:1系统是专门为混合和分配多种1:1体积的材料而设计的。该装置专门设计用于通过重力进料系统混合和分配粘性材料，不需要使用柱塞泵。

特点。

1:1固定比例流体泵

精确的Patriot™ 计量技术

15加仑的A+B聚乙烯罐用于重力进料。

车载模型易于操作

单一扳机动作即可启动/停止喷雾流

对喷枪的维护成本低，方便快捷

采用快速通道设计，减少了标准系统维护的停机时间

1:1爱国者™硅胶系统

规格。

泵送比：15:1

体积材料比：1:1

材料排量（每个流体部分）：1.178 in3/行程（19.30 c.c.）

空气需求。20 CFM

软管长度：25英尺（7.6米）。

选项。

机器人选项与AutoProGun

输送泵

暖气片

便携式手推车

臂架

英文介绍

Specifically designed to mix and dispense multiple 1:1 volumetric materials

The Patriot Duo 1:1 System has been specifically designed to mix and dispense multiple 1:1 volumetric materials. This unit is specifically designed to mix and dispense viscous materials through a gravity feed system that eliminates the need for a ram pump.

Features:

1:1 fixed ratio fluid pumps

Precise Patriot™ metering technology

15 gallon A + B polyethylene tanks for gravity feeding.

Easy maneuverability on cart mount model

Single trigger action to start/stop the spray flow

Easy low cost maintenance on gun

Reduced downtime for standard system maintenance with rapid access design

1:1 PATRIOT ™ SILICONE SYSTEM

Specifications:

Pumping Ratio: 15:1

Volumetric Material Ratio: 1:1

Material Displacement (each fluid section): 1.178 in3/stroke (19.30 c.c.)

Air Requirements: 20 CFM

Hose Length: 25 ft. (7.6 m)

Options:

Robotic Option with AutoProGun

Transfer Pumps

Heaters

Portable Carts

Booms
