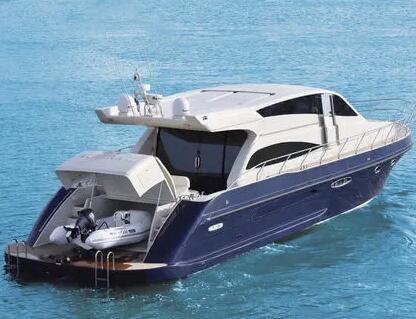

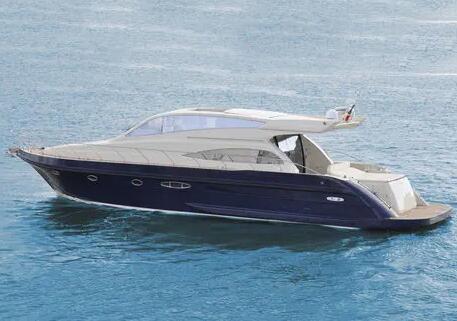

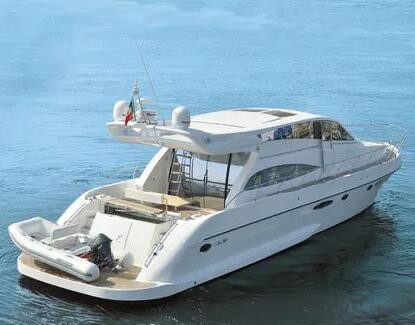

20人个性舒适硬顶游艇(采光良好)

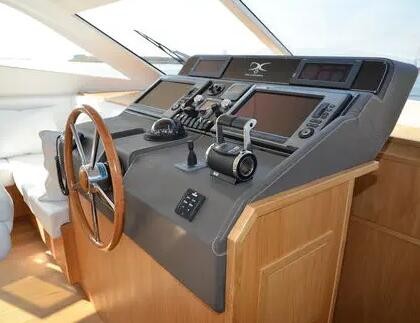

产品图片
重要参数
    用途 巡游
    甲板布局 硬顶
    船舱数量 4舱

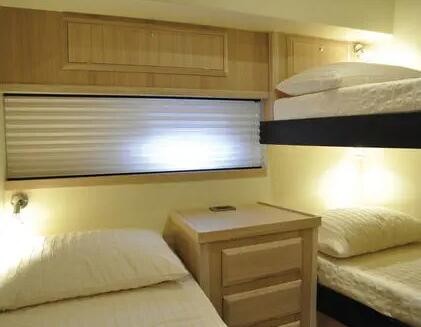

    床位数量 8铺位, 10床位
    船体类型 滑行船身
    长度x宽度 17.98 m (58'11")x5 m (16'04")
    访客人数 20 人
    燃料容量 3,000 l (793 gal)
    淡水容量 400 l (106 gal)

产品简介

完全和彻底的定制使Dellapasqua成为为数不多的设计和建造定制船只的船厂之一,使其成为独一无二的,并保证研究到最小细节的建设性质量。

DC 18 Elite是一艘充满个性的船,标榜着大胆的动态线条,同时也有一种永恒的清醒的优雅。它的内饰提供了完全的舒适性,其许多个性化的可能性意味着每艘船都是独一无二的。它的布局是以细长的线条来表达个性。大的硬顶是电动的,当它打开时允许空气和光线进入,就像一艘开放的船。

白色新戊二醇胶衣具有很强的抗紫外线老化能力。通过使用高机械性能的钢卷和树脂,用不同的垫子分别放置和压制的手工分层。

船底和船舷由塑料制成,并加入了玻璃纤维,横向和纵向加固由相同的材料和泡沫核心制成。电机块和地板由海胶合板制成,上面涂有由玻璃纤维增强的塑料。甲板由夹层塑料制成,由玻璃纤维加固,有垫子、"teranto "夹层、螺丝和海胶合板制成的加固部件。

由于渗透作用,玻璃纤维制成的船体可以常年保持在水下。

船体和甲板设备:75米和8毫米直径的链峰和护舷,CQR/DELTA锚,不锈钢支柱,1000瓦的绞盘,带铃铛和脚踏控制,前甲板,钢化水晶窗和涂有烤漆的铝制框架,电子雨刷与不锈钢系缆器和淡水喷头,2号不锈钢缆绳。

英文介绍

The total and complete customization makes Dellapasqua one of the few boatyards to design and build tailor-made boats, making them unique and guaranteeing a constructive quality studied right down to the smallest detail.

The DC 18 Elite is a boat brimming with personality, flaunting bold dynamic lines that also have a timelessly sober elegance. Its interiors offer complete comfort and its many possibilities for personalisation mean that every boat is unique. The lay-out is made to express personality with a slender line. The big hard top is electric and when it is open allows the entrance of air and light as it were an Open boat

White neopentilic gelcoat with high resistance to UV ray ageing. Handmade stratification with different mats placed and pressured separately by using high mechanical performance steel rolls and resins.

Bottom and sides made of plastic reinforced by incorporated fiberglass with cross and longitudinal reinforcements made of the same material and foam core. Motor blocks and floors made of sea-plywood coated with plastic reinforced by incorporated fiberglass. Deck made of laminated plastic reinforced by incorporated fiberglass, with mats, "termanto" sandwich, screwing and reinforcements parts made of sea-plywood.

Thanks to the osmosis the hull made of fiber glass can stay under the water all the year.

Hull and deck equipment

Peak for chain 75 m and 8 mm diameter and fenders, CQR/DELTA anchor, stainless steel pillar, 1000W winch with bell and foot control, fore sundeck, tempered crystal windows and alluminium frame painted with baked varnish, eletric wipers with stainless steel bollards and freshwater sprinkler , no.2 stainless steel fairleads
