Code 0等级收帆系统（性能型卷扬机）

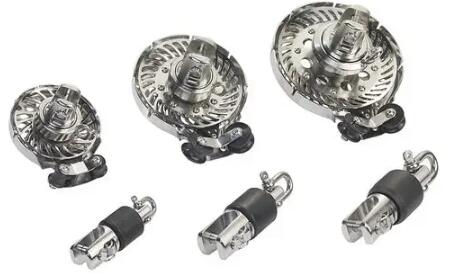

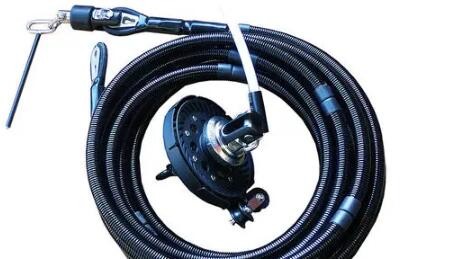

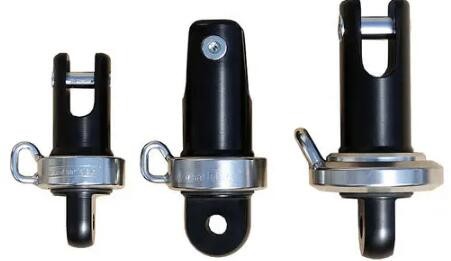

产品图片
 |
 |
重要参数
| 应用 | 用于 Code 0 等级 |
| 最大载荷 | 10 kg, 15 kg, 20 kg, 30 kg, 40 kg (22 lb) |
产品简介适用领域适用于大型飞行的Code Zeros/顶级基诺帆或轻风帆的卷扬。帆围绕着缝在帆尾的AT（低扭矩）线进行收帆。它被弯曲到拢帆器上，并通过特殊的顶针与拢帆轴的末端相接进行旋转。0号帆通常弯折在固定的前桅前的船头配件或船头桅杆上。拢好的帆可以很容易地放下和重新起吊。如果需要将帆弯曲到拢帆机上，可以用手快速地将无尽线从拢帆机上取下，并且可以留在甲板上。拢帆机的进线角度可以固定在12个不同的位置。 比赛或性能--由您选择 竞争系列几乎完全由高强度和耐海水的铝材组成。该系列的产品采用亚光黑色表面，并涂有硬质阳极氧化铝。该系列比性能系列轻约30%。这些低重量的解决方案因其高负载能力和可靠性而受到严肃的比赛水手的高度评价。 性能系列由100%耐海水的不锈钢制成。所有产品都有抛光的丝光表面。性能型卷扬机和转轴特别坚固，受到休闲水手和巡航者的青睐。 英文简介Field of applicationFor furling large, flying Code Zeros / top genoas or light wind sails. The sail furls around an AT (low-torsion) line, which is sewn into the luff of the sail. It is bent onto the furler and swivel by means of special thimbles that are spliced into the end of the furling axle. The Code 0 is usually bent onto the bow fitting or the bowsprit, in front of the fixed forestay. The furled out sail can be dropped and re-hoisted very easily. The endless line can be removed from the furler quickly by hand and can remain on deck if the sail needs to be bent onto the furler. The angle of the line feed out of the furler can be fixed in 12 different positions. Competition or Performance – the choice is yours! The Competition Series is composed almost entirely of high-strength and seawater-resistant aluminium. Products in this series have a matt black finish and are coated in hard-anodised aluminium. This series is approximately 30% lighter than the Performance Series. These low-weight solutions are highly rated by serious racing sailors for their high load capacity and reliability. The Performance Series is manufactured from 100% seawater-resistant stainless steel. All products have a polished silk-matt finish. Performance furlers and swivel are particularly robust and favoured by leisure sailors and cruisers alike. |
