双摩擦环开口滑轮钩(帆船升降索钩)
产品图片
重要参数

产品简介

滑轮钩HK16.2,是顺风修剪大三角的理想滑轮钩!

双摩擦环开口的Textile Hook®,由于采用了Velcro®扭锁带,可以快速、安全地打开和关闭。

经典的开合滑轮有时与低摩擦环联系在一起!但有利的是,它可以被带有双开环的Hook HK-16所取代,你可以在其中快速传递你的床单,形成一个理发师,Hook-high将直接放在大帆板的张力上。

钩-低允许增加一个飞单,然后再把飞单放在一个滑轮或一个带摩擦力的环上(开放或封闭),固定在远处的轨道上或在链板后面的触发防护装置上,回到驾驶舱的绞盘或夹板上,是完善调整的理想选择。

+用途

- 捆绑时,理发师会关闭水蛭,使船帆变空,提供更多的动力。
- 震荡时,理发师会减少帆的力量。
- 在落帆之前,请断开理发师的连接。

+ 数据表

- 两个工业铝材制成的开口环;灰色;内径20毫米
- 有护套或过护套的纺织连接器,100%迪尼玛参考Nodex R2 12 Fx预拉伸灰色
- T型骨(狗骨)硬化铝制浅灰色,dyneema纺织连接器闭合附件
- 通过在纺织连接器上缠绕来确保魔术贴闭合,Twist-lock

+优势

- 开口摩擦环系统,移动性强,用途广泛
-卓越的重量/阻力比
-高效、轻便
- 可靠、免维护
- 可拆卸

英文简介

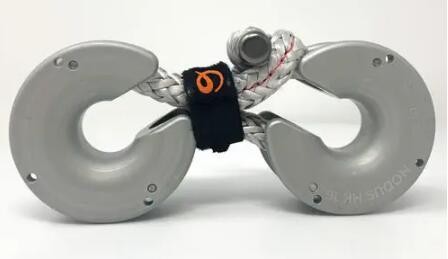

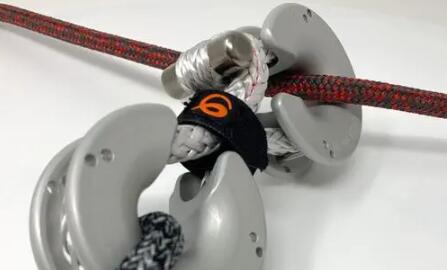

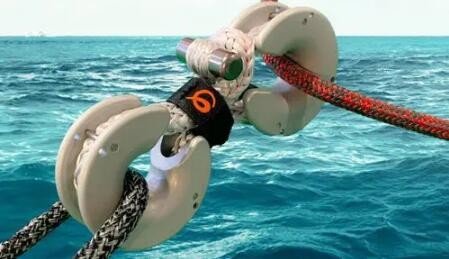

Pulley Hook HK16.2, the ideal pulley barber for spinnaker trimming downwind !

Double friction ring opening Textile Hook® that offers a fast and secure opening and closing thanks to the Velcro® Twist-Lock strap.

The classic opening pulley is sometimes associated with a low friction ring! But advantageously it can be replaced by a Hook HK-16 with double open ring in which you pass your sheets quickly to create a barber, the Hook-high will be placed directly on the spinnaker sheet in tension.

The Hook-low allows the addition of a flying sheet which will be then taken again on a pulley or a ring with friction (Open or closed) fixed either on the rail of fargues or on a trigger guard behind the chain plates to return to the cockpit on a winch or a cleat, ideal to refine your adjustments.

+ Uses

- Tacked the barber closes the leech and hollows out the sail, giving more power.
- Shocked the barber reduces the power of the sail
- Disconnect your barber before dropping your sail

+ Data sheet

- Two open rings made of technical aluminium ; grey ; internal diameter 20mm
- Sheathed or over-sheathed textile connector, 100% dyneema reference Nodex R2 12 Fx pre-stretched grey
- T-bone (dog bone) hardened aluminum light gray, textile connector closure accessory in dyneema
- Secure velcro closure by winding on the textile connector, Twist-lock

+ Advantages

- Opening friction ring system, mobile and versatile
-Excellent weight/resistance ratio
-Efficient, lightweight
- Reliable and maintenance free
- Removable
