水上物流产品分类

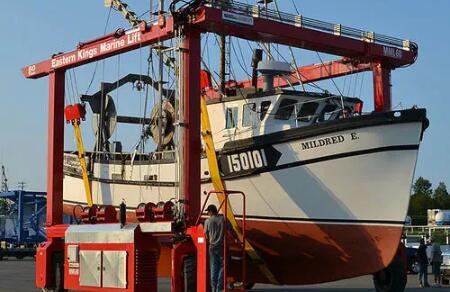

无线电遥控船艇搬运机(U形重载起重机)
产品图片
重要参数
    技术参数 遥控, 重载, U形
    载荷 200,000 lb (90,718.5 kg)

产品简介

定制颜色选择--189种颜色可供选择
无线电遥控--所有功能包括驱动和转向
寒冷天气包 - 包括发动机和液压加热器
交付、设置和操作员培训

开放式高速钢框架,带有前装横梁和平衡接头,以减轻压力
燃油箱和液压箱与主框架结构融为一体
动力装置:100马力CAT柴油机
驱动系统:全静液压驱动,带动态制动(多湿盘停车制动)。
行走速度:每分钟从0到100英尺不等
坡度能力:最大5%的倾斜度
提升速度:从1′到20′/分钟
转向:90度转向能力
每个升降点上都有飞行员操作的安全锁阀
缆车式的所有功能的控制,包括完整的发动机仪表
四个升降点的功能可以同时或独立操作
吊索:4-12英寸中心断开式吊索,带液压前后调节功能
轮胎:54英寸x16英寸28层花纹工业轮胎
前进和后退运动报警
数字负荷表(磅或公斤)。
完全喷砂至白色金属,1层锌底漆,1层环氧树脂高建底漆
聚氨酯漆--2层Conolift Red PPG商业性能漆
框架保修2年/液压部件保修1年/或2000小时,以先到者为准

英文简介

Custom colour choice – 189 colors to choose from
Radio Remote Control – all functions including drive and steering
Cold weather package – includes engine and hydraulic heaters
Delivery, set-up, and operator training

Open end HSS frame, with forward mounted crossbeam & equalizing joint to relieve stress
Fuel and hydraulic tanks are integral in main frame construction
Power Unit: 100 HP CAT Diesel
Drive System: Full hydrostatic drive with dynamic braking (multi wet-disk parking brake)
Travel Speed: Variable from 0 to 100′ per minute
Grade Capability: Maximum 5% incline
Lift Speed: From 1′ to 20′ per minute
Steering: 90 degree steering capability
Pilot operated safety lock-valves on each lift point
Gondola style with controls for all functions, including full engine instrumentation
Four point lift functions can be simultaneously or independently operated
Slings: 4 – 12″ center-disconnect slings with hydraulic fore / aft adjustment
Tires: 54″ x 16″ 28 ply lug tread industrial tires
Forward and backwards motion alarm
Digital load guages (lbs or kgs)
Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
2 year warranty on frame / 1 year on hydraulic components / or 2000 hrs whichever comes first
