水上物流产品分类

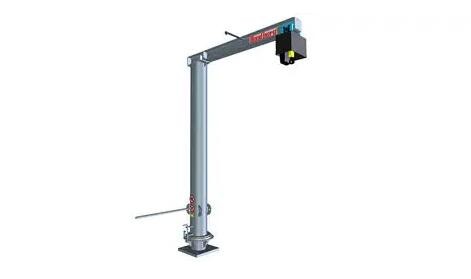

单轨回转式吊杆海港造船起重机
产品图片
重要参数
    应用领域 船坞, 用于海港
    类型 吊杆, 单轨式, 起重吊杆
    其他特性 船只搬运, 定制
    起重能力 2 t (2.2 us ton)
    提升高度 最多: 6.1 m (20'00")
    范围 最多: 2.5 m (8'02")最少: 0.3 m (0'11")
    负载提升速度 0.1 m/s (0.3 ft/s)
    总高度 5.4 m (17'08")
    总宽度 2.1 m (6'10")

产品简介

回转式起重机是船吊的替代品。回转式起重机本身占用的空间要小得多。它在地基、路面和产品本身方面所需的投资也要少得多。
柱式回转起重机与Roodberg运输拖车的结合确保了对可用空间的充分利用。
起重机是完全由电力驱动的,因此是100%环保的选择。

同类产品中的终极完美

起重机的操作很容易学会,特别是使用符合人体工程学设计的无线电遥控器。
起重机可以无限制地旋转360度,这使得在任何需要的位置定位船只成为可能。
因为只有一个人可以用起重机把船带入和带出水面,所以你会更灵活。
起重机内部的所有部件都很容易接近。
耐用性、长寿命和低维护成本是所有Roodberg产品的一个重要原则!我们通过以下方式实现这一点:应用高质量的材料,认为标准,不锈钢导条,热浸镀锌紧固件,使用带支架加热的不锈钢电柜,非常高质量的双组分油漆系统,其中空心空间被密封,部件提供曲线以实现最佳的边缘覆盖。
SPC的四个吊点保证了对船的更多控制,即使是在风的条件下。

英文介绍

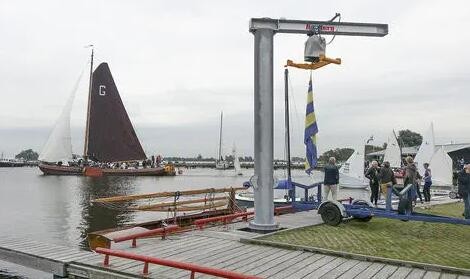

A slew crane is the alternative to a boat hoist. A slew crane itself takes up much less space. It also requires a much lower investment, in foundation, pavement and in the product itself.
The combination of a column slewing crane with a Roodberg transport trailer ensures full utilisation of the available space.
The crane is fully electrically powered and therefore the 100% environmentally friendly alternative.

Ultimate perfection in its class

The operation of the crane is easy to learn, especially with the ergonomically designed radio remote control.

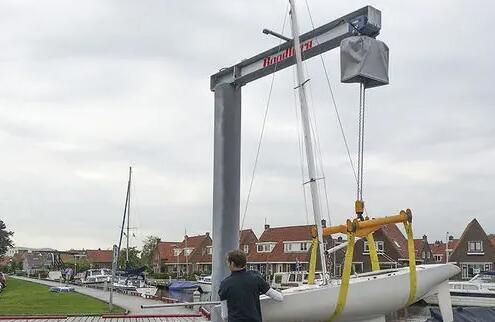

The crane can rotate an unlimited 360 degrees, which makes it possible to position a boat in any desired location.
Because only one person can take a boat in and out of the water with the crane, you are more flexible.
All components inside the crane are easily accessible.
Durability, long life span and low maintenance costs are an important principle for all Roodberg products! We achieve this by: applying high quality materials, think of standard, stainless steel guide strips, hot dip galvanised fasteners, the use of stainless steel electrical cabinets with stand heating, a very high quality two-component paint system where hollow spaces are sealed and parts are provided with curves for optimal edge coverage.
The SPC's four lifting points guarantee more control over the boat, even in windy conditions.
