26英尺传统型1舱斜桁帆巡游帆船(可牵引性补助帆桁帆船)
产品图片
重要参数
    用途 巡游
    船舱数量 1舱
    帆缆索具 补助帆桁, 斜桁帆
    全部长度 7.95 m (26'00")
    宽度 7'09" (2.38 m)
    吃水深度 1'06" (0.46 m)
    位置 2,300 lb (1,043.26 kg)
    帆面 237 m² (2,551 ft²)
    发动机功率 10 ch (10 hp)

产品简介

与地衣的目标是发展能一条小大小的风船(20英尺)没有草稿的,过份关心舒适地巡航西北部的死水和海湾。 这vee基于了船身设计是答复对挑战。 浅草稿可能仍然产生于延长巡航适合的宽敞的舒适的内部。 地衣以画38 "下来和17 "的可撤回的活动船板为特色,做浅水区航海短冷期。 浅水区草稿与中等轻的位移(2500 lbs结合了。),并且适度地狭窄的射线, 7 ' 8 ",帮助达到另一个目标 -- trailerability。

在水,地衣看一看非常传统。 大毂仓大门船舵和大开放驾驶舱与她237结合了平方。 英尺gaff船具设置了卓著的通用性的场面在一个中意的包裹。 帆柱在临时房屋,上上下下容易地折叠,别的加上,当trailering时。

在风帆之下地衣很好相当是槽枥和风帆在各种各样风并且挥动。 它总是使我惊奇这些摇篮车鞠躬的船身航行以及他们。

内部膳宿包括一个大向前双重停泊处,跟随由反对的长椅停泊处(中心线桌附有折叠活动船板的树干下来做更加床铺区域。) 要端起是船上厨房,完成与宽裕的工作区和存贮,留出逆空间被整理和视觉上喜欢。 到右舷是固定木火炉服务作为湿齿轮的加热器和烘干机。 便携式的头在升降扶梯步之下。 内部的最醒目的特征是空间的感觉,并且视觉自由大口岸给您观看美好的风景外面。 -- 山姆Devlin

英文介绍

The goal with Lichen was to develop a smaller-sized sailboat (20 feet) able to comfortably cruise the backwaters and bays of the Northwest without excessive concern for draft. This vee-bottomed hull design is an answer to the challenge. The shallow draft can still yield a roomy comfortable interior suited for extended cruising. The Lichen features a retractable centerboard that draws 38" down and just 17" up, making shallow water navigation a snap. The shallow water draft combined with the medium light displacement (2500 lbs.) and moderately narrow beam, 7'8", helps achieve another goal -- trailerability.

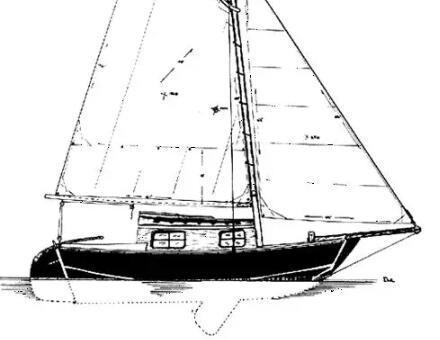

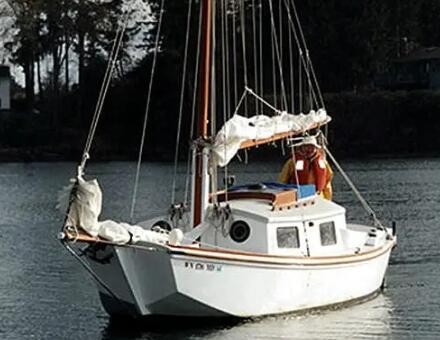

On the water, Lichen has a very traditional look. The large barn door rudder and large open cockpit combined with her 237 sq. ft. gaff rig set the scene for outstanding versatility in a pleasing package. The mast is on a tabernacle, folding easily up or down, another plus when trailering.

Under sail Lichen is quite stable and sails well in a variety of wind and waves. It has always amazed me that these pram-bowed hulls sail as well as they do.

Interior accommodations include a large forward double berth, followed by opposing settee berth (centerline table attached to the centerboard trunk folding down to make even more bunk area.) To port is the galley, complete with ample workspace and storage, leaving the counter space uncluttered and visually pleasing. To starboard is a built-in wood stove serving as heater and dryer for wet gear. The portable head is under the companionway step. The most striking characteristic of the interior is the feeling of space and the visual freedom the large ports give you to view the beautiful scenery outside. -- Sam Devlin
