易操作1舱传统型帆船(配备太阳能电池板)

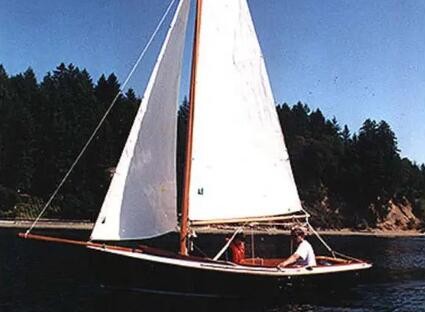

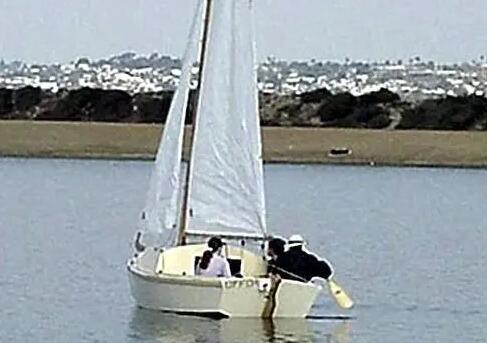

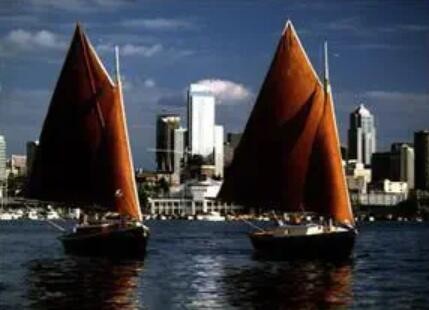

产品图片

重要参数
    用途 传统型
    船舱数量 1舱
    全部长度 4.65 m (15'03")
    宽度 6'02" (1.89 m)
    吃水深度 10 in
    帆面 124 m² (1,335 ft²)
    发动机功率 2 ch (2 hp)

产品简介

在这个新版本中,南希的中国号没有上身,如果你仔细看一下船舵,你会看到她的辅助动力装置。我们增加了一个电动马达。该电机是一个43磅推力的电动,由两个8D深循环12伏直流电池供电。有三个正向和三个反向速度可供选择,南希的中国DC以4节的速度巡航约14小时。有一个内置的20安培电池充电器,可以给电池完全充电。只要在家里或在码头上把它与家用电流连接起来,你就可以再次出发了。每个143磅的电池还可以作为压舱物。

她配备了一个安培小时表来测量电池电量,以及一个50英寸x15英寸的太阳能电池板,当船在停泊时,可以保持电池电量充足。

124平方英尺的帆面积设置在一个小单桅帆船上,航行性能仍然很好。如果你想在风中寻找更多的性能,可以选择一个可拆卸的碳纤维船首斜桅,以设置一个160平方英尺的不对称大三角帆。性能和易用性一直是南希中国的标志,随着DC的增加,我们只是改进了这艘美妙的船。- 山姆-德夫林

英文介绍

In this new version of our old favorite, Nancy’s China goes topless, and if you take a closer look at the rudder you will see her auxiliary power plant. We have added an electric motor. The motor is a 43 pound thrust electric, powered by two 8D deep-cycle 12 volt DC batteries. With three forward and three reverse speeds available, Nancy’s China DC cruises at 4 knots for approximately 14 hours. There is a built-in 20 amp battery charger that will completely recharge the batteries. Just hook it up to household current at home, or on the dock, and you are ready to go again. The batteries at 143 lbs. each also serve as ballast.

She is equipped with an amp-hour meter to measure battery draw, as well as a 50″ x 15″ solar panel to keep the batteries topped off when the boat is on a mooring.

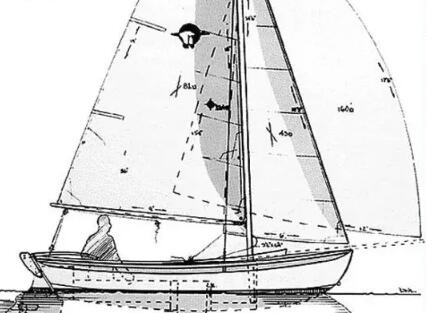

The sailing performance is still great with the 124 square feet of sail area set on a fractional sloop rig. If you are looking for a little more performance off the wind, an optional removable carbon fiber bowsprit is available to set a 160 square foot asymmetrical spinnaker. Performance and ease of use have always been the hallmark of the Nancy’s China and with the additions to the DC we have only improved a wonderful boat. — Sam Devlin
