产品简介

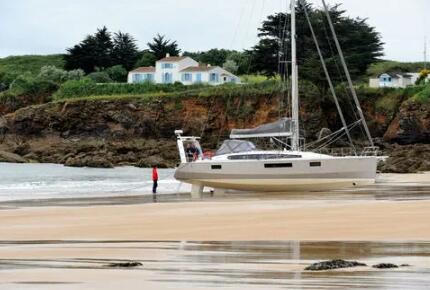

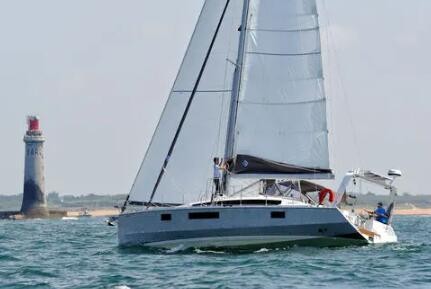

OVNI 450 是新版本的 OVNI 445，其中 46 个单元自 2008 年第一个单元以来已经建成。 Marc Lombard，谁设计了这个惊人的升降龙骨的原始计划，已经想到了新的元素，给它一个新的青春。

在 OVNI 445 的同一船体底部，OVNI 450 将有一个更宽的后裙，铺平地板，并可开放进入驾驶舱。 它将配备双掌舵站，更大的固定船体舷窗和更直杆。 还将有一个弓鼻，包括弓滚筒，一个较大的开口舷窗储物柜和一个更设计的锚杆讲坛。

445 的各种选项将成为 450 的标准，如 Staron 驾驶舱桌或集成到游泳平台的 S/S 梯子等。

规格

建筑师:马克隆巴德

赫尔莱特:13,98 米

伦特在水线:12,66 米

最大光束:4,29 米

与中心板向上:2,90 米

吃水中心板下:1,05 米

排量:11 550 公斤

压载重量:3 725 公斤

水箱:540 升

燃料箱:2 x 250 升

风帆面积:95,50 平方米

主帆:43,50 平方米

热那亚:52 平方米

停船:25 平方米

发动机:沃尔沃 D2-50 轴驱动 (36.5 千瓦)

C.E. 批准:A

英文介绍

The OVNI 450 is the new version of the OVNI 445, of which already 46 units have been built since the first one in 2008. Marc Lombard, who designed the original plans of this amazing lifting keel, has thought of new elements to give it a new youth.

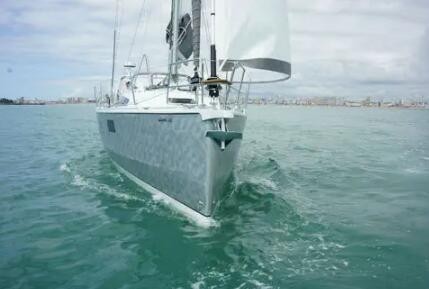

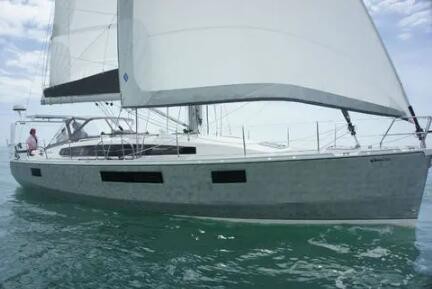

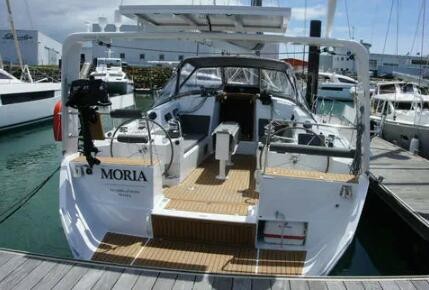

On the same hull underbody of the OVNI 445, the OVNI 450 will have a wider rear skirt with flat flooring and an open access to the cockpit. It will be equipped with twin helm stations, bigger fixed hull portholes and a straighter stem. There will also be a bow nose that will include the bow roller, a bigger opening porthole for the storage locker and a more designed anchor pulpit.

Various options of the 445 will become standard on the 450, like the Staron cockpit table or the S/S ladder integrated to the swim platform, among others.

SPECIFICATIONS

Architect: Marc LOMBARD

Hull lenght: 13,98 m

Lenght at waterline: 12,66 m

Maximum beam: 4,29 m

Draught with centerboard up: 2,90 m

Draught centerboard down: 1,05 m

Displacement: 11 550 kg

Ballast weight: 3 725 kg

Water tanks: 540 l

Fuel tanks: 2 x 250 l

Sail area on the wind: 95,50 sqm

Main sail: 43,50 sqm

Genoa: 52 sqm

Staysail: 25 sqm

Engines: Volvo D2-50 shaft drive (36.5 kW)

C.E. approval: A
